| Model NO. | YG-W100GF | Installation Method | Fixed |
| Stroke | Four Stroke | Cooling Method | Water Cooling |
| Output Type | AC Three Phase | Speed | Speed |
| Conditions of Use | Land Use | Usage | Common Units, Standby Unit, Emergency Crew |
| Landuse Type of Unit | Ordinary | Excitation Mode | AC Rotating Exciter |
| Transport Package | Plywood Case Packing for Open Type | Specification | LARGE |
| Trademark | YAG | Origin | China |
| HS Code | 850213 | Production Capacity | 3000sets |
| Package Size | 234.00cm * 75.00cm * 130.00cm |
| Package Gross Weight | 1150.000kg |
| Lead Time | 15 days (1 – 10 Sets) To be negotiated ( > 10 Sets) |
|

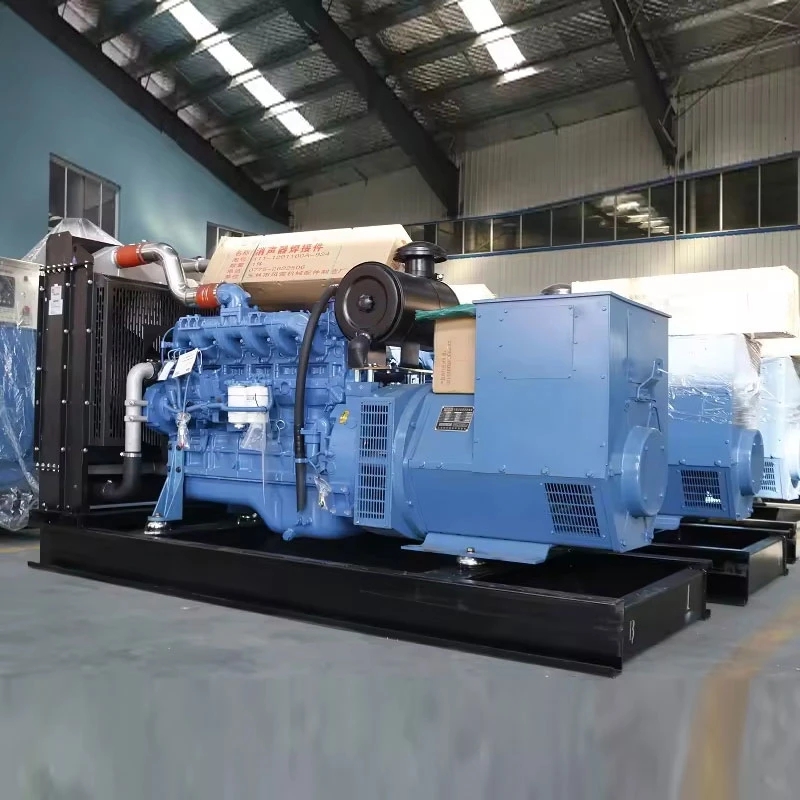

Technical specification parameters of 150KW series diesel generator set
|
|||
|
Unit model
|
YAG-150GF
|
Rated power
|
150KW
|
|
Rated output voltage
|
230V/400V
|
Rated power factor
|
0.8
|
|
Rated current
|
270A
|
Insulation grade
|
H
|
|
Rated speed
|
1500/1800rpm
|
Protection grade
|
IP22
|
|
Rated frequency
|
50/60HZ
|
Overall dimension (mm)
|
2400*750*1200
|
|
Voltage Control Methods
|
AVR
|
Overall weight
|
1050KG
|
|
Technical specification parameters of diesel engine
|
|||
|
Brand
|
YAG
|
Model
|
R6105IZLD
|
|
Cylinders
|
6
|
Speed
|
1500/1800rpm
|
|
Bore * stroke(mm)
|
105*125
|
Power
|
1151KW
|
|
Displacement
|
6.49
|
Fuel consumption rate
|
209g/kwh
|
|
Type
|
Straight line, four stroke
|
Lubrication mode
|
Pressure and splash type
|
|
Intake mode
|
Turbo charged
|
Start-up mode
|
24V DC electric start
|
|
speed regulation
|
Mechanical speed regulation
|
Cooling mode
|
Closed water cooling
|
|
Technical specification parameters of alternator
|
|||
|
Rated power
|
150KW
|
Type
|
Brushless
|
|
Insulation grade
|
H
|
Protection grade
|
IP22
|
|
Phase
|
3-Phase,4-wire
|
Voltage Control Methods
|
AVR
|
Quality & Testing
1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control).
Q1: Are you a manufacture factory or trade company?
A1: We are the manufacturer factory specialized in diesel generator set industry for many years already. Annual output 20,000sets, products/service reach 40 countries and regions.
