| Model NO. | YG-150GF | Speed | Low Speed |
| Conditions of Use | Land Use | Usage | Common Units, Standby Unit, Emergency Crew |
| Landuse Type of Unit | Low Noise | Excitation Mode | AC Rotating Exciter |
| Transport Package | Plywood Case | Trademark | yag |
| Origin | Weifang | HS Code | 8502120000 |

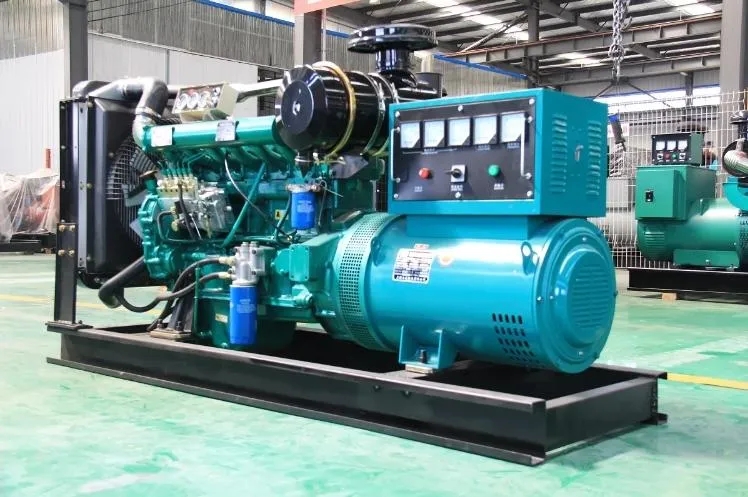

open type 120kw 150kva Diesel generator Auto Start Water cooling generator
|
Technical specification parameters of 120KW series diesel generator set
|
|||
|
Unit model
|
YAG-120GF
|
Rated power
|
120KW
|
|
Rated output voltage
|
230V/400V
|
Rated power factor
|
0.8
|
|
Rated current
|
216A
|
Insulation grade
|
H
|
|
Rated speed
|
1500/1800rpm
|
Protection grade
|
IP22
|
|
Rated frequency
|
50/60HZ
|
Overall dimension (mm)
|
2400*750*1200
|
|
Voltage Control Methods
|
AVR
|
Overall weight
|
1050KG
|
|
Technical specification parameters of diesel engine
|
|||
|
Brand
|
YAG
|
Model
|
R6105IZLD
|
|
Cylinders
|
6
|
Speed
|
1500/1800rpm
|
|
Bore * stroke(mm)
|
105*125
|
Power
|
132KW
|
|
Displacement
|
6.49
|
Fuel consumption rate
|
209g/kwh
|
|
Type
|
Straight line, four stroke
|
Lubrication mode
|
Pressure and splash type
|
|
Intake mode
|
Turbo charged
|
Start-up mode
|
24V DC electric start
|
|
speed regulation
|
Mechanical speed regulation
|
Cooling mode
|
Closed water cooling
|
|
Technical specification parameters of alternator
|
|||
|
Rated power
|
120KW
|
Type
|
Brushless
|
|
Insulation grade
|
H
|
Protection grade
|
IP22
|
|
Phase
|
3-Phase,4-wire
|
Voltage Control Methods
|
AVR
|
