| Model NO. | YG-30GF | Landuse Type of Unit | Ordinary |
| Speed | Low Speed | Excitation Mode | AC Rotating Exciter |
| Conditions of Use | Land Use | Transport Package | Plywood Case |
| Usage | Common Units, Standby Unit, Emergency Crew | Trademark | yag |
| Origin | Weifang | HS Code | 8502110000 |
|

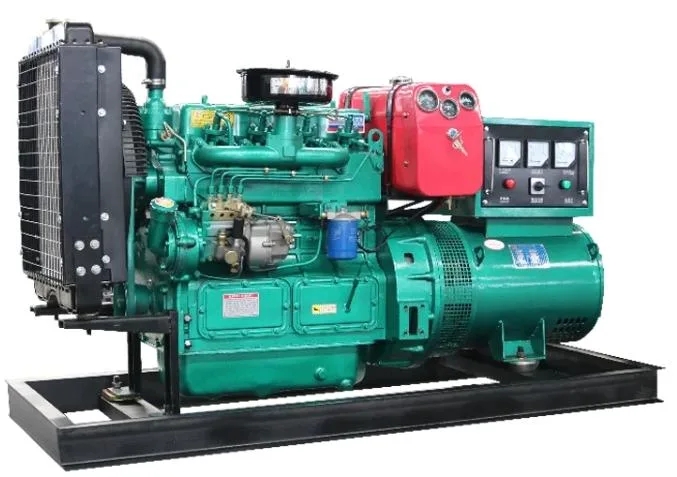

Technical specification parameters of 30KW series diesel generator set
|
|||
|
Unit model
|
YG-30GF
|
Rated power
|
30KW
|
|
Rated output voltage
|
110-480V
|
Rated power factor
|
0.8
|
|
Rated current
|
54A
|
Insulation grade
|
H
|
|
Rated speed
|
1500/1800rpm
|
Protection grade
|
IP22
|
|
Rated frequency
|
50/60HZ
|
Overall dimension
|
1800*700*1200 mm
|
|
Voltage Control Methods
|
AVR
|
Overall weight
|
500KG
|
|
Technical specification parameters of diesel engine
|
|||
|
Brand
|
YAG
|
Model
|
K4100D
|
|
Cylinders
|
4
|
Speed
|
1500/1800rpm
|
|
Bore * stroke
|
100*115 mm
|
Power
|
30.1KW
|
|
Displacement
|
3.6L
|
Fuel consumption rate
|
209g/kwh
|
|
Type
|
Straight line, four stroke
|
Lubrication mode
|
Pressure and splash type
|
|
Intake mode
|
Direct injection
|
Start-up mode
|
12V DC electric start
|
|
speed regulation
|
Mechanical speed regulation
|
Cooling mode
|
Closed water cooling
|
|
Technical specification parameters of alternator
|
|||
|
Rated power
|
30KW
|
Type
|
Brushless
|
|
Insulation grade
|
H
|
Protection grade
|
IP22/23
|
|
Phase
|
3-Phase,4-wire
|
Voltage Control Methods
|
AVR
|
